Trephine Bur
Reference code: TANTBL2535
Diameter
Ø3.5 (in Ø2.5)
Ø5.0 (in Ø4.0)
Ø6.0 (in Ø5.0)
Ø7.0 (in Ø6.0)
Type
long (38mm)
short (32mm)
Log in om prijzen (en voorraadinformatie) te zien >
Inloggen
Toevoegen
Inloggen
Favoriet
Varianten
Specificaties
Varianten
Diameter
Type
Reference Code
Ø3.5 (in Ø2.5)
short (32mm)
TANTBL2535
Ø5.0 (in Ø4.0)
TANTBL4050
Ø6.0 (in Ø5.0)
TANTBL5060
Ø7.0 (in Ø6.0)
TANTBL6070
Ø3.5 (in Ø2.5)
long (38mm)
TANTBE2535
Ø5.0 (in Ø4.0)
TANTBE4050
Ø6.0 (in Ø5.0)
TANTBE5060
Ø7.0 (in Ø6.0)
TANTBE6070
Alle maten zijn in millimeters
Specificaties

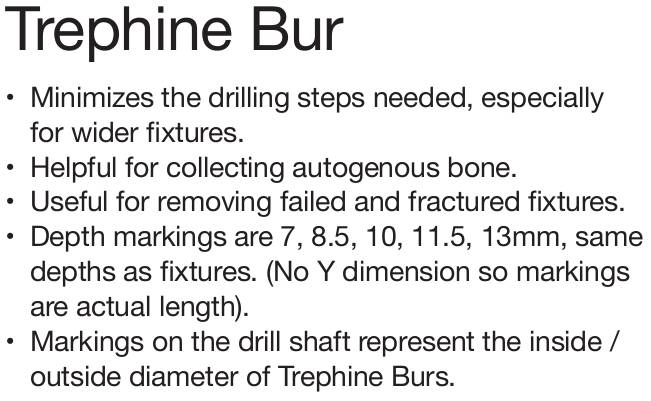

Minimizes the drilling steps needed, especially for wider fixtures.
Helpful for collecting autogenous bone.
Useful for removing failed and fractured fixtures.

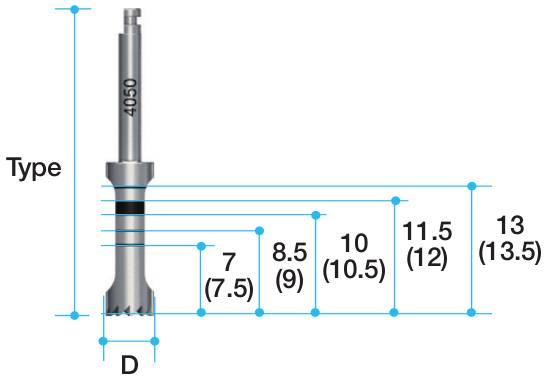

Depth markings are 7, 8.5, 10, 11.5, 13mm, same depths as fixtures. (No Y dimension so makings are actual length).
Markings on the drill shaft represent the inside / outside diameter of Trephine Burs.
